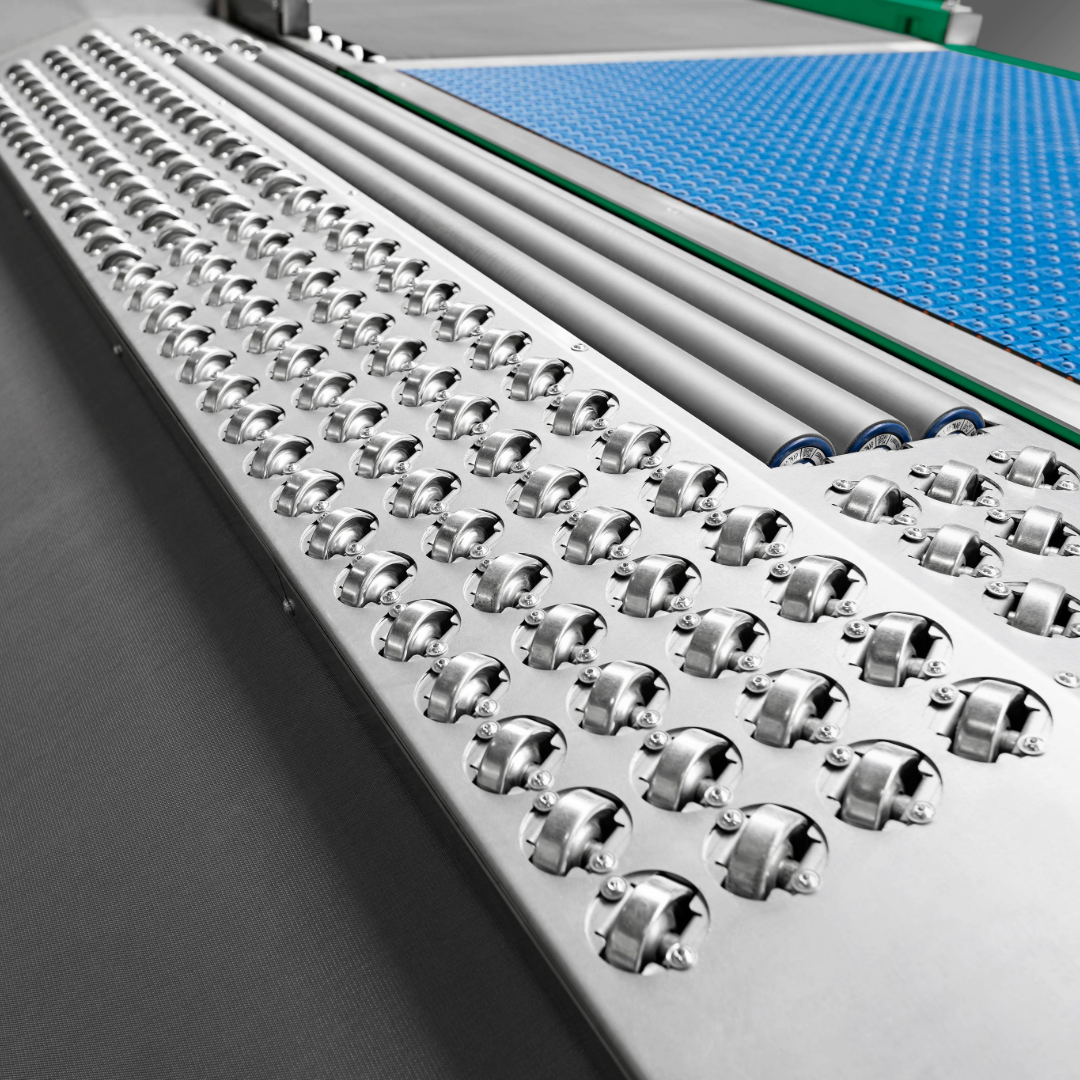

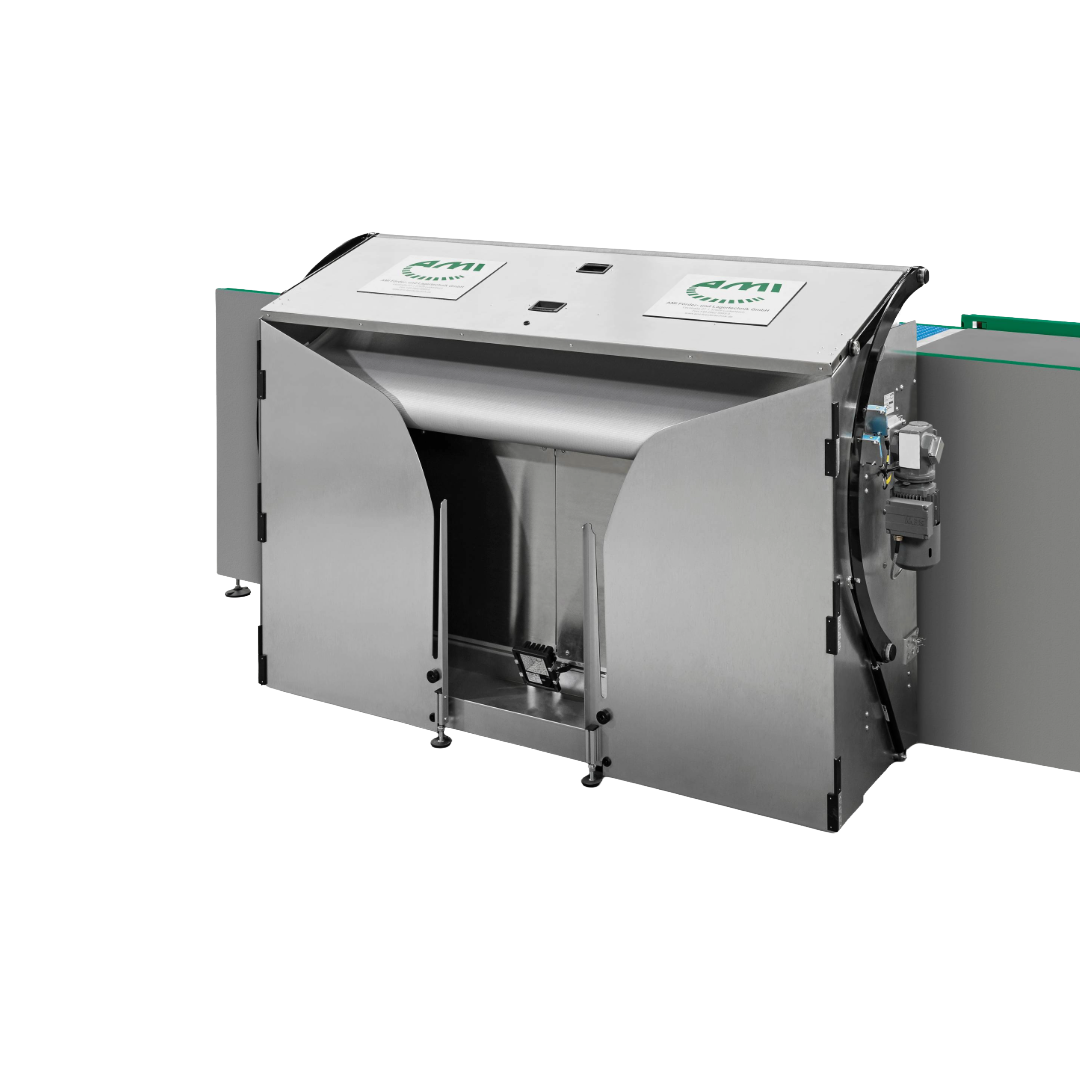

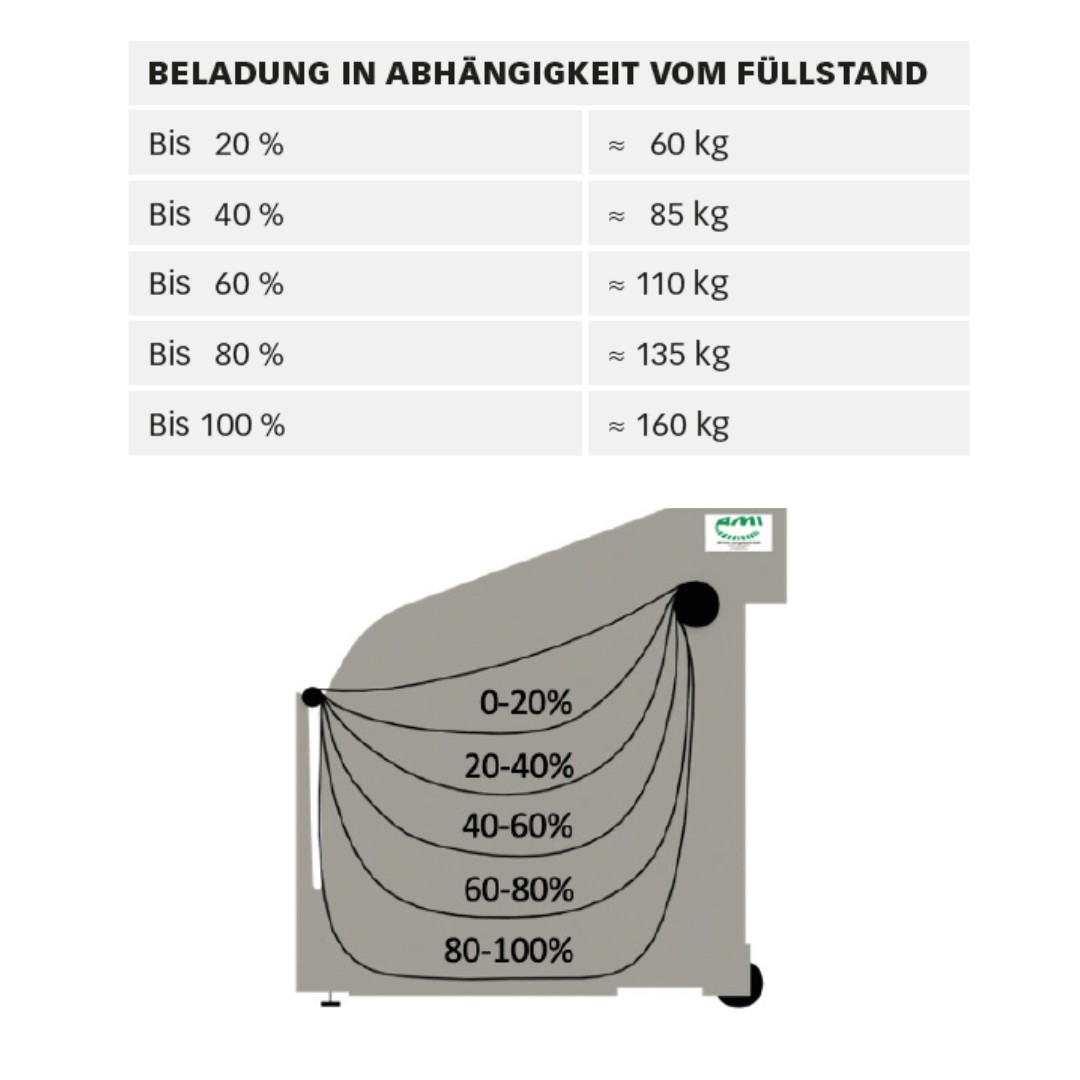

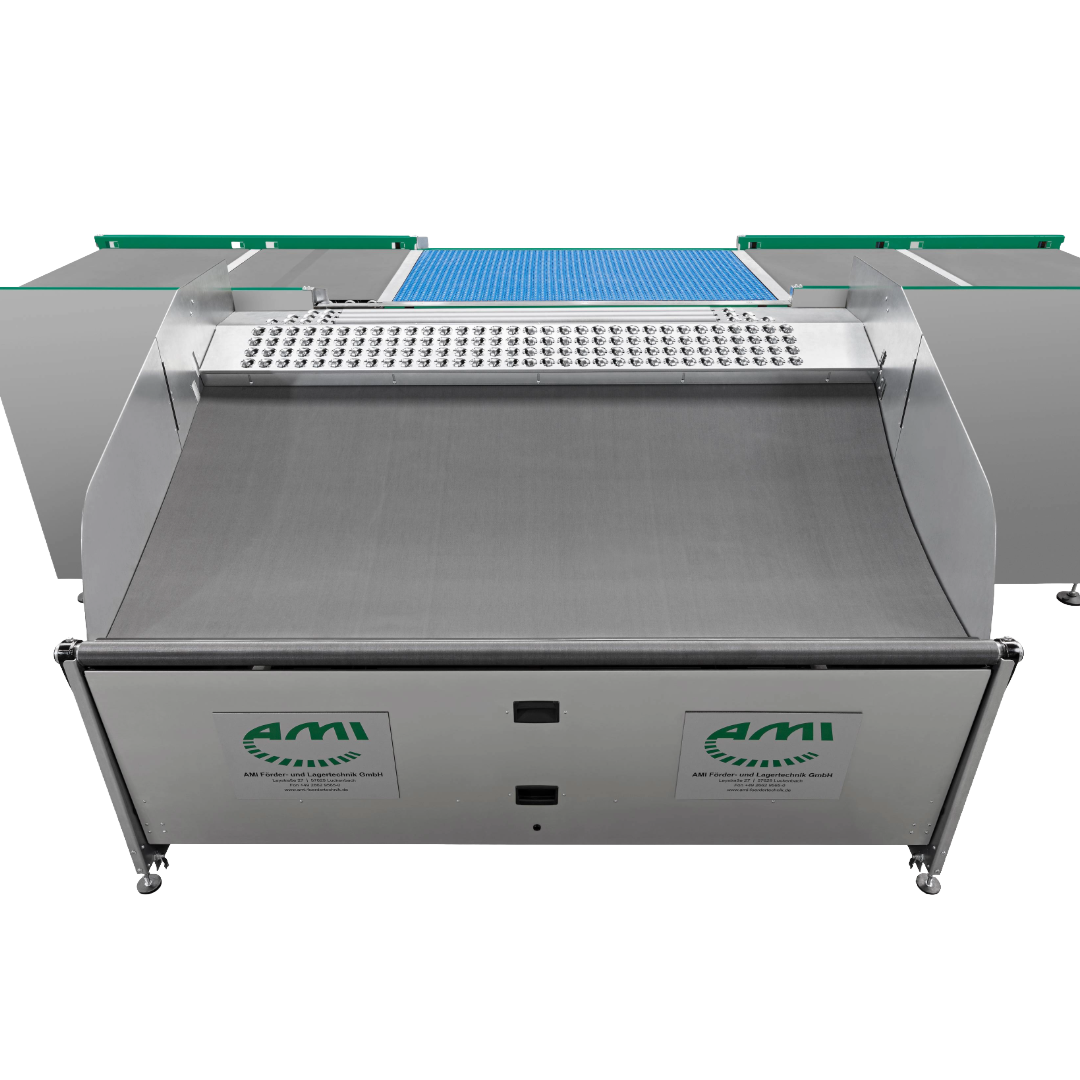

The dynamic goods storage system DWS is used for the intermediate storage of conveyed goods, such as polybags, parcels
and packages, depending on the fill level up to a maximum of 160 kilograms. Depending on the goods being conveyed, the individual weight
can be a maximum of 32 kilograms. The DWS can be operated without an additional operator, and the automatic
height adjustment ensures an optimum filling and distribution level as well as an ergonomic working height
when the conveyed goods are subsequently removed. It is mobile and can be folded up to save space, making it
possible to store it separately from the system.
| Filling weight: (max.) | 160 kg |
|---|---|
| Ambient temperature: | + 5 to + 40 °C |
| Installation dimensions: | approx. 2,350 x 1,300 x 1,550 mm |
| Weight: | approx. 460 kg |
| Winding unit: | PES collection mat, driven by 400 V geared motor |
| Connection: | 220 to 240 V or 380 to 415 V, 3-phase, 50 Hz, protection class IP 54 (not explosion-proof) |
